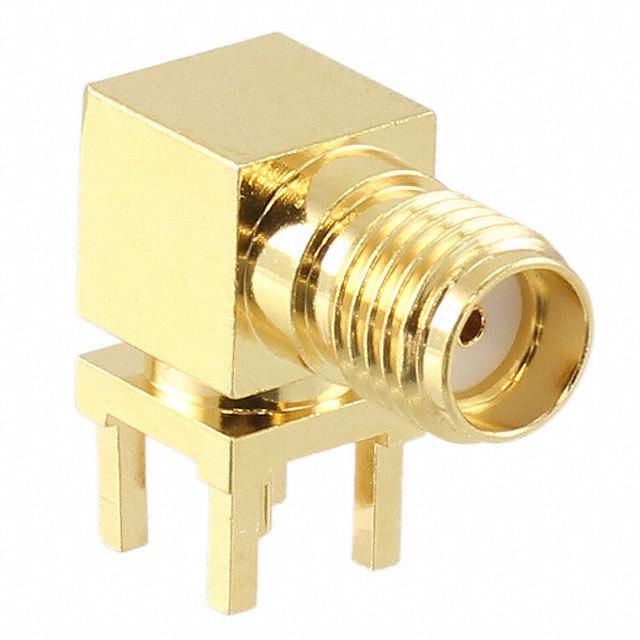

1470509-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1470509-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1470509-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1470509-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SMA JACK R/A 50OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | 1470509-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SMA JACK R/A 50OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5241 pcs | Data sheet | |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Tray |
| Other Names | A118233 | Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Contact, 2 Insulators | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
