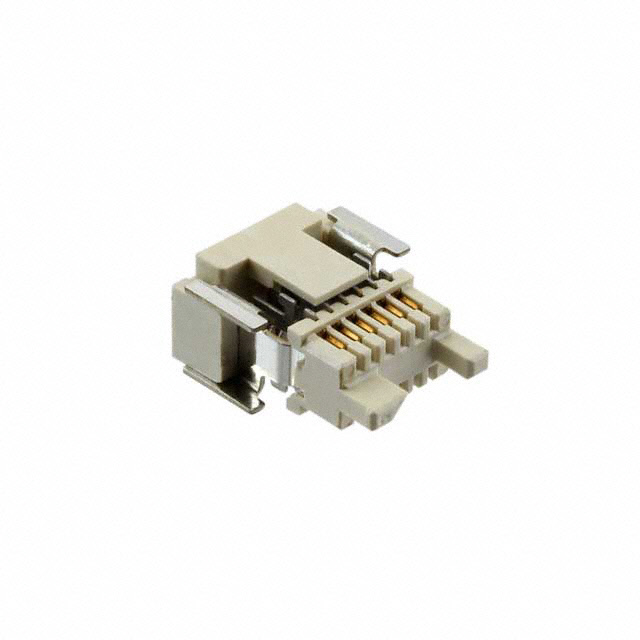

1445297-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1445297-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1445297-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1445297-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | REC.R/A SMT,12 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.77 | $5.244 | $5.113 | $4.72 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.457 | $4.064 | $3.802 | $3.487 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1445297-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | REC.R/A SMT,12 POS | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 8869 pcs | Data sheet | 1445297 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU Micro | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Bulk |
| Other Names | A117249 | Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 28 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.409" (10.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 12 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold |
| Current Rating | - | Contact Type | Female Blade Socket |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
