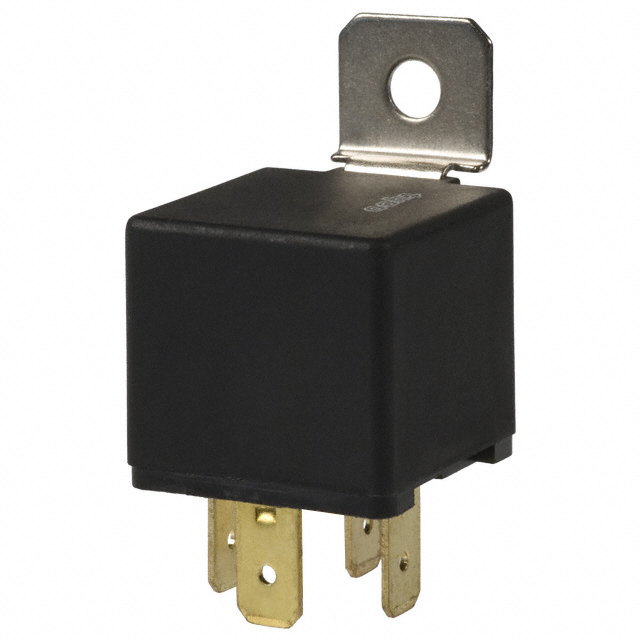

1432772-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1432772-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1432772-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1432772-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPST 30A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.386 | $1.299 | $1.154 | $1.097 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.039 | $0.923 | $0.866 | $0.808 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1432772-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 30A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39707 pcs | Data sheet | 1432772-1 Drawing |
| Category | Relays | Turn On Voltage (Max) | 7.8 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Switching Voltage | 14VDC - Nom | Series | VF4 |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 14327721 PB685 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 8ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount |
| Contact Rating (Current) | 30A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 90 Ohms |
| Coil Power | 1.6 W | Coil Current | 133mA |
