130014

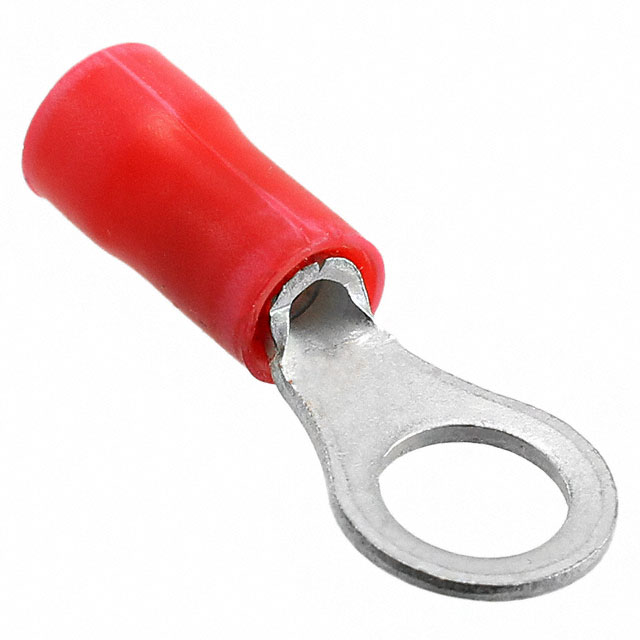

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 130014 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 130014 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 130014 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 16-22AWG M5 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.102 | $0.096 | $0.082 | $0.07 | $0.067 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.06 | $0.057 | $0.048 | $0.044 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 130014 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 16-22AWG M5 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 536759 pcs | Data sheet | 130014 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.315" (8.00mm) | Thickness | 0.032" (0.81mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | M5 Stud | Series | Plasti-Grip |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Manufacturer Standard Lead Time | 14 Weeks | Length - Overall | 0.858" (21.79mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.106" ~ 0.140" (2.69mm ~ 3.56mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Ring Terminal Connector M5 Stud Circular 16-22 AWG Crimp | Contact Material | Copper |
| Contact Finish | Tin | Color | Red |
