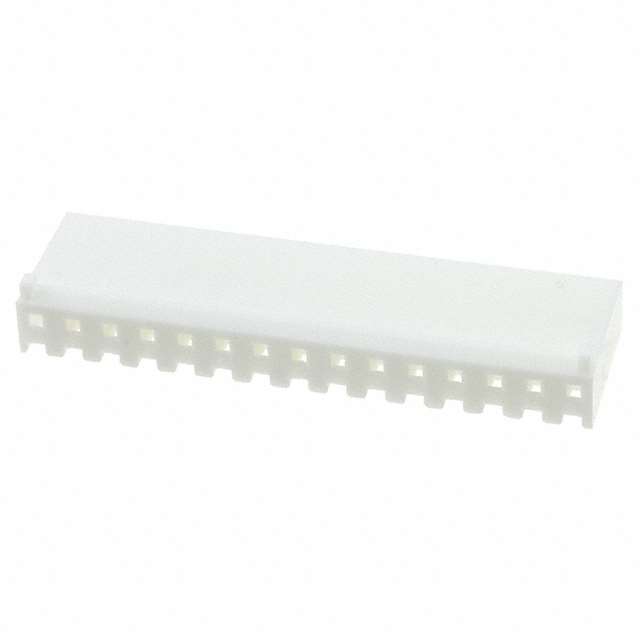

1-770849-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-770849-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-770849-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-770849-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 15POS CRIMP SL156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.299 | $0.263 | $0.247 | $0.237 | $0.227 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.206 | $0.186 | $0.165 | $0.149 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-770849-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 15POS CRIMP SL156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158183 pcs | Data sheet | 770849 Drawing |
| Category | Connectors, Interconnects | Series | SL-156 |
| Row Spacing | - | Pitch | 0.156" (3.96mm) |
| Packaging | Bulk | Other Names | 1-770849-5-ND 17708495 A112748 |
| Number of Rows | 1 | Number of Positions | 15 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Polarizing Key |
| Fastening Type | Locking Ramp | Detailed Description | 15 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm) |
| Contact Type | Female Socket | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Natural |
