1-1971921-7

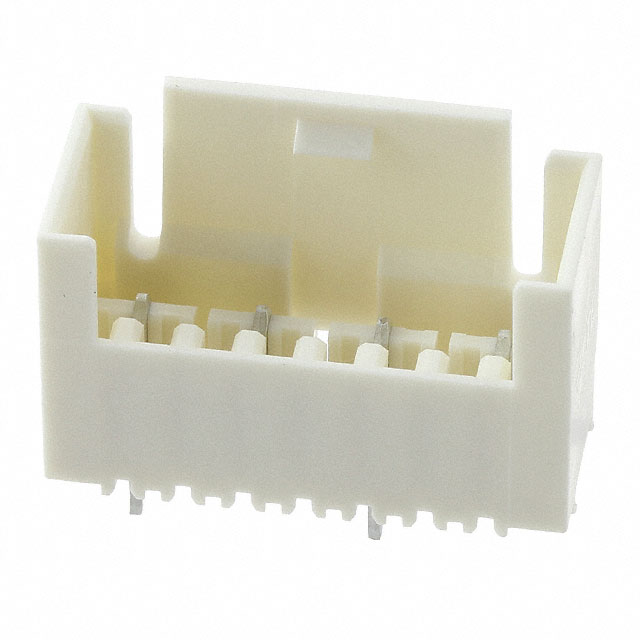

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1971921-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1971921-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1971921-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 4/7P,RAST 2.5 TAB HEADER,EX- LOC |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 135 pcs | 540 pcs | |
|---|---|---|---|---|---|
| $0.319 | $0.281 | $0.242 | $0.198 | ||
| 1080 pcs | 5130 pcs | 10125 pcs | |||
| $0.176 | $0.154 | $0.146 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1971921-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 4/7P,RAST 2.5 TAB HEADER,EX- LOC | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 129191 pcs | Data sheet | 1971921 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A118562 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | 4 |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.610" (15.49mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 7 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
