1-178138-5

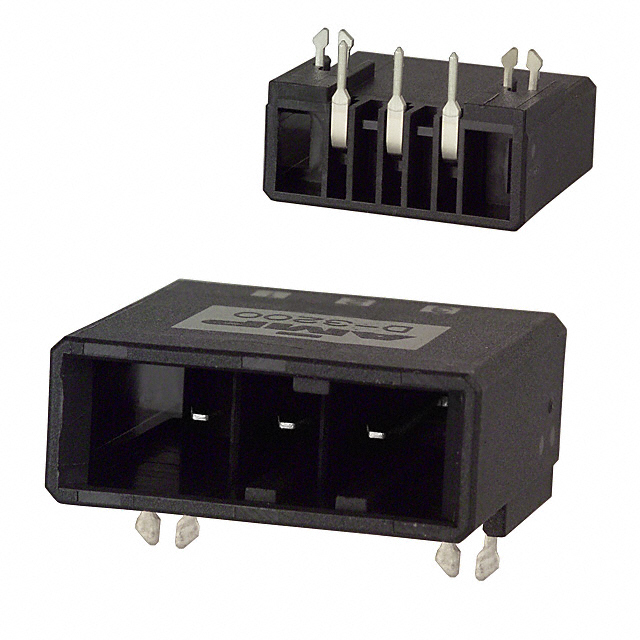

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-178138-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-178138-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-178138-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR 3POS R/A KEY-X TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.478 | $0.419 | $0.361 | $0.295 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.263 | $0.23 | $0.218 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-178138-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR 3POS R/A KEY-X TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86889 pcs | Data sheet | 178138 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-3200 |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A29387 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.368" (9.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial |
