87438-0833

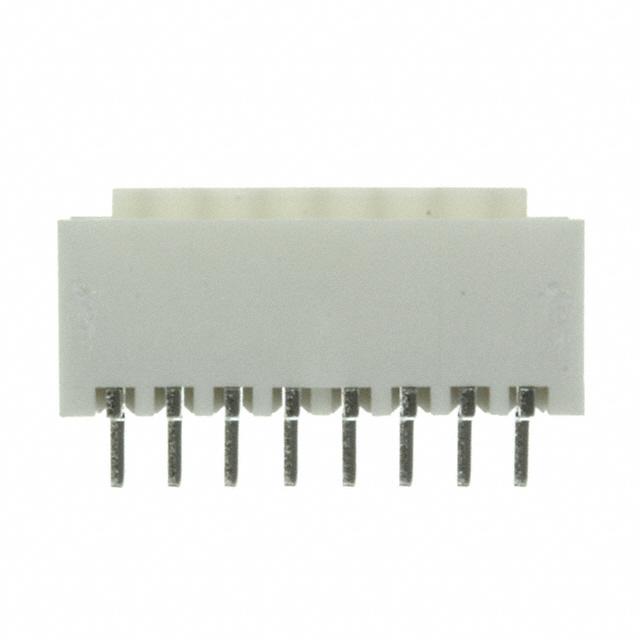

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87438-0833 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87438-0833 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87438-0833 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 8POS 1.5MM R/A SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87438-0833 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 8POS 1.5MM R/A SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5543 pcs | Data sheet | 87437-xx33 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-SPOX 87438 |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 874380833 WM2054CT |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.175" (4.45mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 8 position 0.059" (1.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.106" (2.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | General Purpose, Medical |
