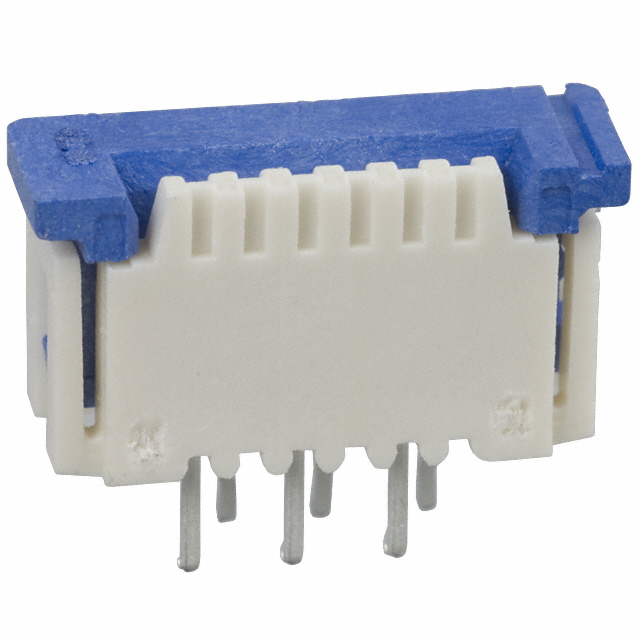

71226-0625
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71226-0625 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 71226-0625 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 71226-0625 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 6POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 71226-0625 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 6POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5593 pcs | Data sheet | 71226-0625 |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Kinked Pin | Series | 71226 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 071226-0625 071226-0625-E 0712260625 0712260625-E 71226-0625-E 71226-0625-TR252 712260625 712260625-E A712260625 WM5301 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 5 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Natural | Height Above Board | 0.236" (6.00mm) |
| Flat Flex Type | FFC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 6 Position FFC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 196.9µin (5.00µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled | Actuator Color | Blue |
