22-03-2111

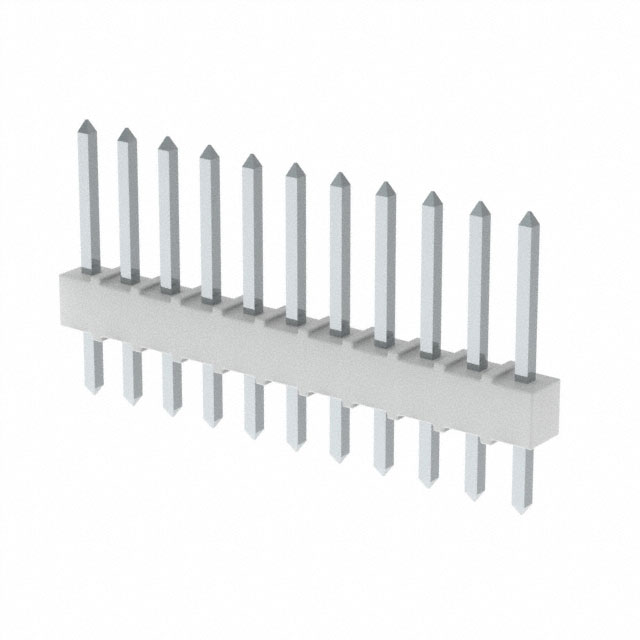

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-03-2111 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-03-2111 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-03-2111 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 11POS .100 VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.43 | $0.377 | $0.326 | $0.266 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.237 | $0.207 | $0.197 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-03-2111 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 11POS .100 VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101275 pcs | Data sheet | 10-07 Prod Spec22-03-2111 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 4030 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.560" (14.22mm) |
| Other Names | 0022-03-2111 0022-03-2111-P 0022032111 0022032111-P 22-03-2111-P 22032111 22032111-P A-4030-11A197 WM4009 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 11 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | White |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 11 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.135" (3.43mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
