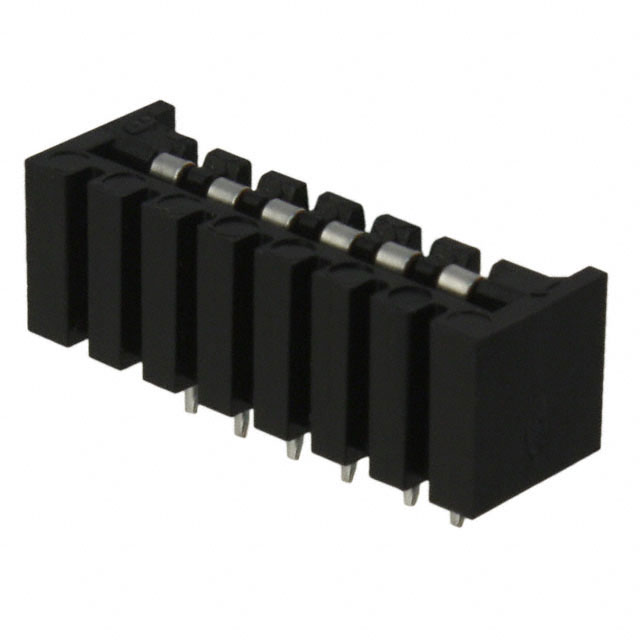

22-02-3063
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-02-3063 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-02-3063 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-02-3063 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 6POS 2.54MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-02-3063 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 6POS 2.54MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4405 pcs | Data sheet | 22-02-3xx3 |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Series | 5229 |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0022-02-3063 0022-02-3063-E 0022023063 0022023063-E 22-02-3063-E 22023063 22023063-E 5229-06CPB 5529-09CPB |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Locking Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyester |
| Housing Color | - | Height Above Board | 0.256" (6.50mm) |
| Flat Flex Type | FFC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 6 Position FFC Connector Contacts, Vertical, 1 Sided 0.100" (2.54mm) Through Hole |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Straight |
| Actuator Material | - | Actuator Color | - |
