1720650312

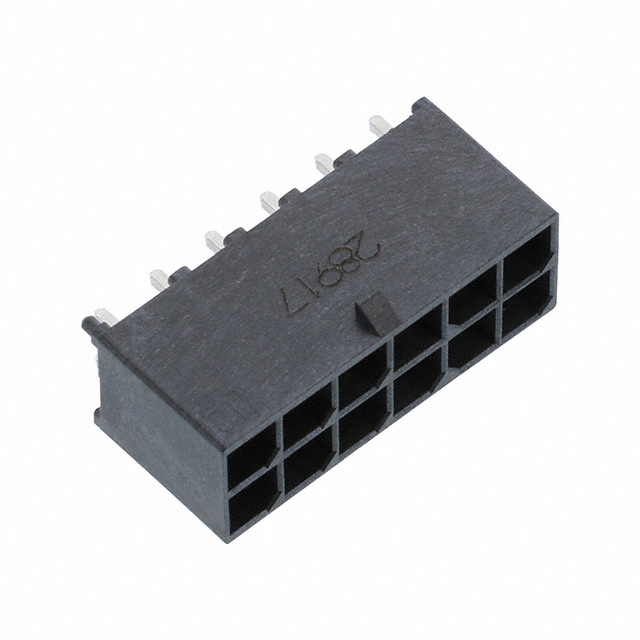

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1720650312 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1720650312 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1720650312 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MEGAFIT SLIM VERT HDR ASSY 12 CK |
| Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Reference Price (In US Dollars) | 1 pcs | 46 pcs | 138 pcs | 506 pcs | 1012 pcs |
|---|---|---|---|---|---|
| $4.12 | $3.653 | $3.184 | $2.716 | $2.491 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1720650312 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MEGAFIT SLIM VERT HDR ASSY 12 CK | Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined |
| Quantity Available | 15656 pcs | Data sheet | 73823-100 Appl Spec1720650312 Drawing76823-100 Prod SpecMega-Fit Series Brochure |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mega-Fit |
| Row Spacing - Mating | 0.224" (5.70mm) | Pitch - Mating | 0.224" (5.70mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 172065-0312 WM16853 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Vendor undefined / Vendor undefined | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.583" (14.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 12 position 0.224" (5.70mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper |
| Contact Length - Post | 0.147" (3.73mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Telecommunications |
