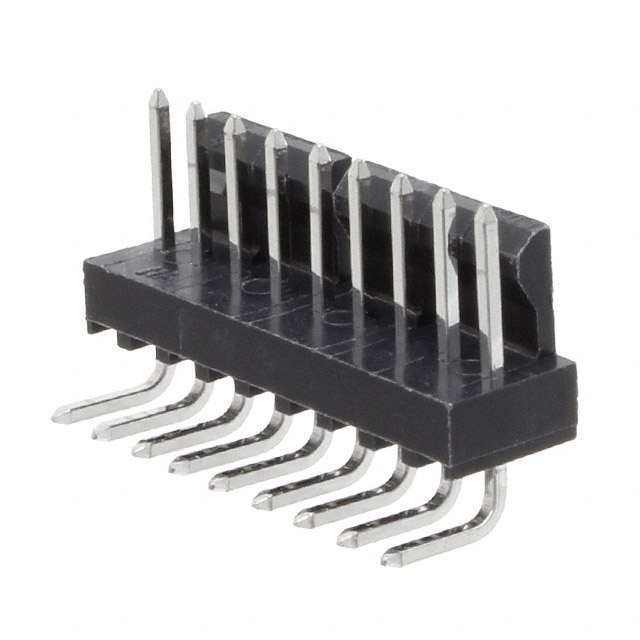

1718570009
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1718570009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1718570009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1718570009 |
|---|---|
| Manufacturer | Molex, LLC |
| Description | KK RPC 100 HDR FRLK RTAN 09 CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.153 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1718570009 | Manufacturer | Molex, LLC |
|---|---|---|---|
| Description | KK RPC 100 HDR FRLK RTAN 09 CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125133 pcs | Data sheet | 171857 Drawing171856,57 Brief171856,57 Spec 1 |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Brass |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | KK® 171857 | Row Spacing - Mating | Shrouded - 1 Wall |
| RoHS Status | Bulk | Ripple Current - Low Frequency | Automotive, General Purpose, Medical, Telecommunications |
| Pitch - Connector | - | Overall Contact Length | 0.100" (2.54mm) |
| Other Names | 171857-0009 WM10193 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions | 9 |
| Number of Contacts | 60µin (1.52µm) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 11 Weeks |
| Manufacturer Part Number | 1718570009 | Length - Post (Mating) | - |
| Insulation Material | Tin | Insulation Height | - |
| Features | - | Expanded Description | 9 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Description | KK RPC 100 HDR FRLK RTAN 09 CKT | Current Rating | - |
| Current - Max/Contact | Friction Lock | Contact Length - Post | 0.265" (6.73mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | Polyamide (PA), Nylon |
| Contact Finish Thickness - Mating | Tin | Contact Finish - Post | 60µin (1.52µm) |
| Contact Finish - Mating | 0.250" (6.35mm) | Connector Type | Header |
| Actual Diameter | Black |
