15-97-7024
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15-97-7024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15-97-7024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15-97-7024 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

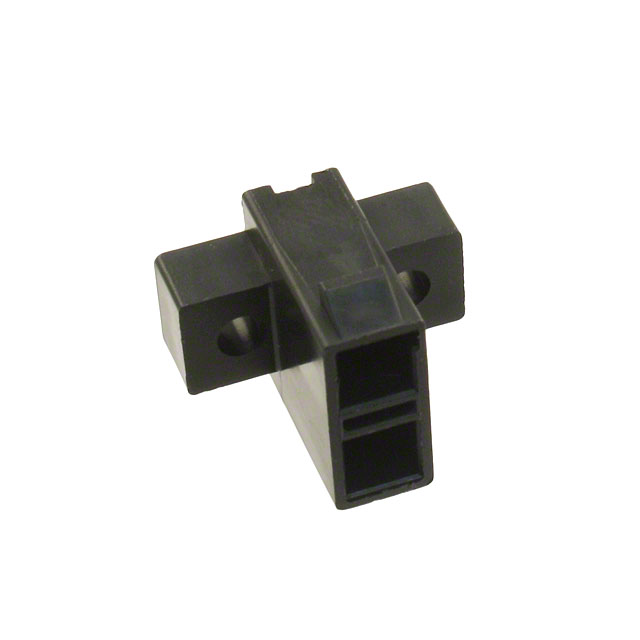

| Description | CONN HEADER 2POS 4.2MM STR GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15-97-7024 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2POS 4.2MM STR GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5586 pcs | Data sheet | 30069-zzzz Drawing15-97-7xx45556-003 Product SpecMini-Fit® Roadmap |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit TPA 30069 |
| Row Spacing - Mating | 0.217" (5.51mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 001597-7024 0015977024 01597-7024 015977024 15-97-7024-ND 1597-7024 15977024 A-30069-02A2 WM4757 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester | Insulation Height | 0.504" (12.80mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 2 position | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass Alloy | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, Industrial, Telecommunications |
