1053132303

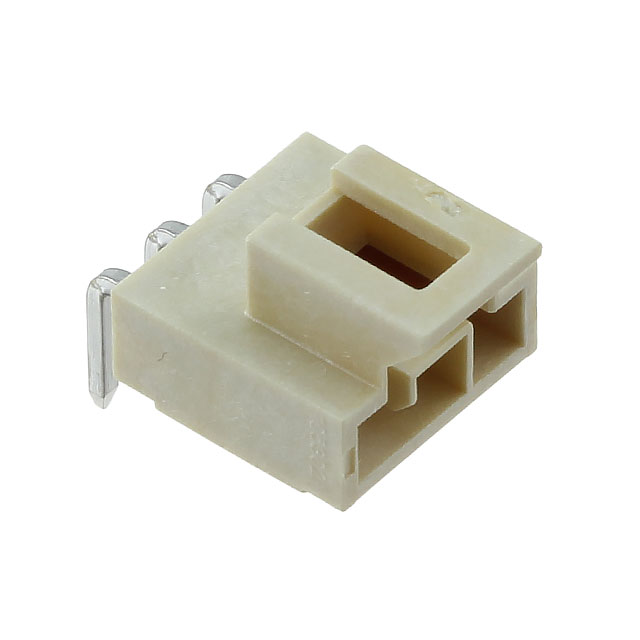

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1053132303 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1053132303 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1053132303 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | NANO-FIT HDR RA SGL 3CKT 30AU WH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 204 pcs | 612 pcs | |
|---|---|---|---|---|---|
| $0.571 | $0.517 | $0.443 | $0.369 | ||
| 1020 pcs | 5100 pcs | 10200 pcs | |||
| $0.317 | $0.281 | $0.274 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1053132303 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | NANO-FIT HDR RA SGL 3CKT 30AU WH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83198 pcs | Data sheet | 105313 Series DrawingNano-Fit™ Power Connector Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Nano-Fit 105313 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 105313-2303 WM15156 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.149" (3.78mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 59.0µin (1.50µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
