0878321412

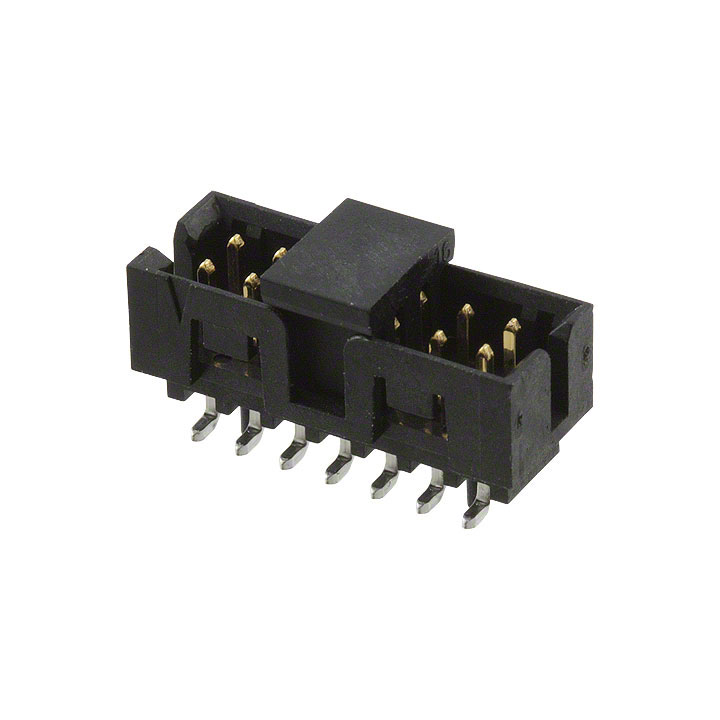

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0878321412 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0878321412 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0878321412 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MGRID SHRD HDR SMT O/CAP GOLD 14 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0878321412 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MGRID SHRD HDR SMT O/CAP GOLD 14 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5949 pcs | Data sheet | 87832-300 Pkg Spec087832 Drawing87831-33 Series Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid 87832 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 0878-32-1412 878-32-1412 87832-1412 878321412 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.252" (6.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount 14 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.141" (3.60mm) | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Telecommunications |
