0554470270

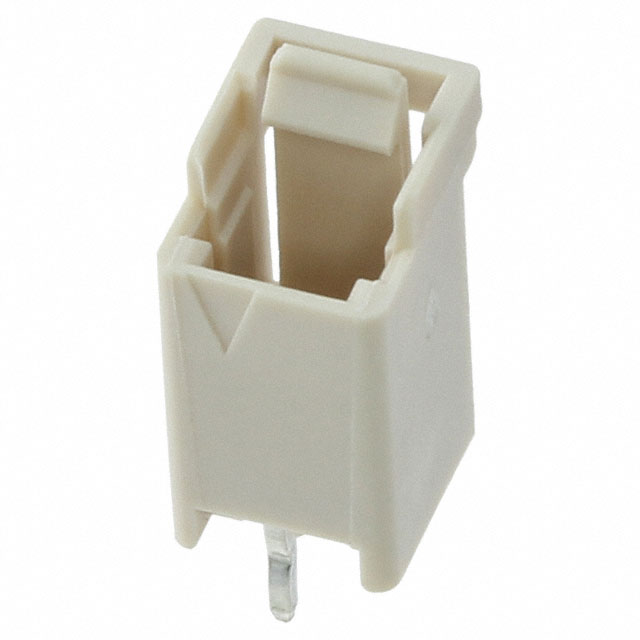

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0554470270 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0554470270 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0554470270 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINI MI II 1ROW WAFER ASSY 2CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.17 | $0.16 | $0.112 | $0.096 | ||
| 3000 pcs | 6000 pcs | 12000 pcs | |||
| $0.073 | $0.068 | $0.062 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0554470270 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINI MI II 1ROW WAFER ASSY 2CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 371003 pcs | Data sheet | 055447xx7x Drawing1.25mm Pitch Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini Mi II 55447 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tray | Overall Contact Length | 0.323" (8.20mm) |
| Other Names | 0554-47-0270 055447-0270 0554470270-ND 55447-0270 554470270 WM14657 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.4mm | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.303" (7.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 2 position 0.049" (1.25mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.110" (2.79mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
