0547220224

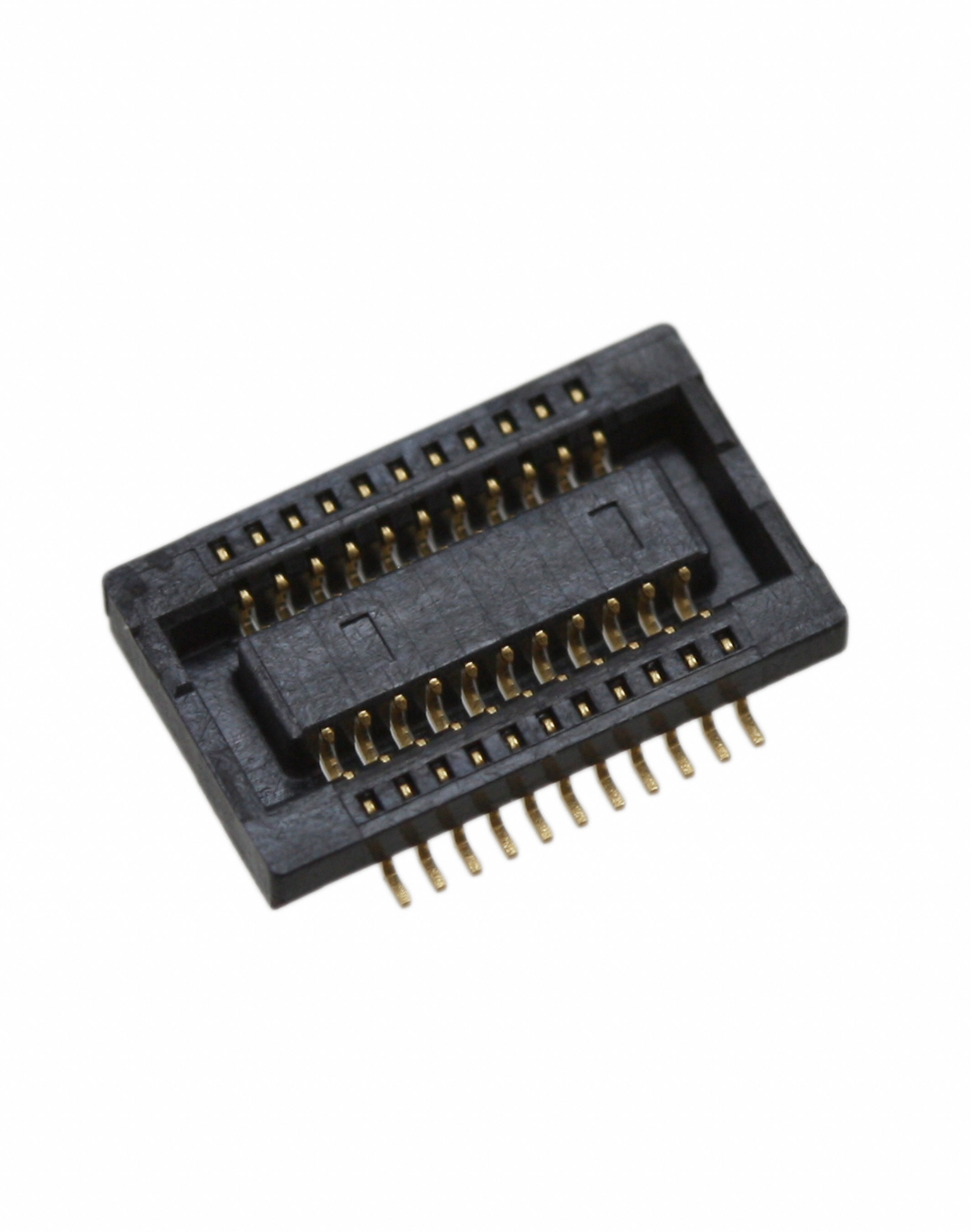

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0547220224 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0547220224 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0547220224 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECPT 22POS 0.5MM SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.645 | $0.586 | $0.55 | $0.527 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.503 | $0.455 | $0.419 | $0.359 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0547220224 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECPT 22POS 0.5MM SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59230 pcs | Data sheet | 054722022454722, 55560 Series Prod Spec |
| Category | Connectors, Interconnects | Series | SlimStack 54722 |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | WM3447DKR | Number of Rows | 2 |
| Number of Positions | 22 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 1.5mm |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.045" (1.14mm) | Features | - |
| Detailed Description | 22 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
