0536490474

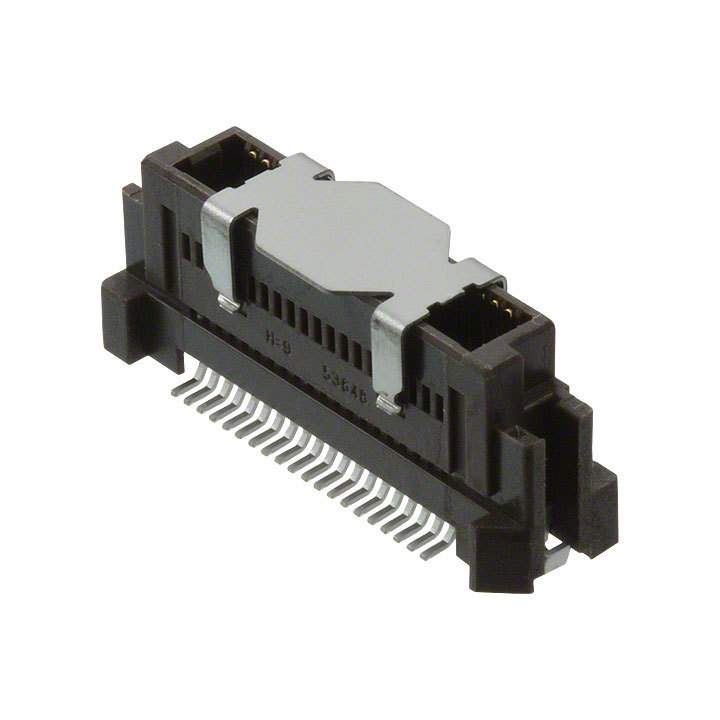

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0536490474 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0536490474 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0536490474 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG BTB 40POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 760 pcs | 1520 pcs | 3800 pcs | 5320 pcs | |
|---|---|---|---|---|---|
| $0.788 | $0.711 | $0.686 | $0.661 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0536490474 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG BTB 40POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48197 pcs | Data sheet | 52901, 53649 Series DrawingProd Spec |
| Category | Connectors, Interconnects | Series | SlimStack 53649 |
| Pitch | 0.025" (0.64mm) | Packaging | Tape & Reel (TR) |
| Other Names | 053649-0474 53649-0474 53649-0474-TR190 536490474 WM8881TR |
Number of Rows | 2 |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 14mm, 15mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.315" (8.00mm) | Features | Board Guide, Solder Retention |
| Detailed Description | 40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
