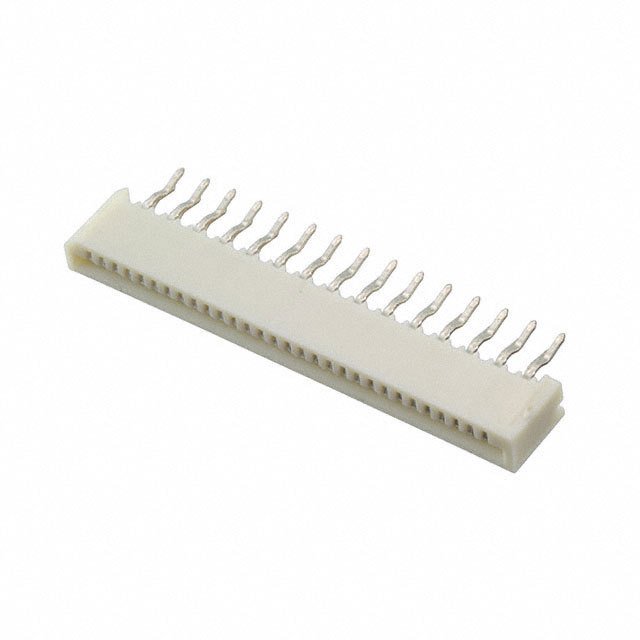

0528063010
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0528063010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0528063010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0528063010 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 30POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.243 | $0.227 | $0.204 | $0.182 | $0.174 | |
| 250 pcs | 500 pcs | 1000 pcs | 3000 pcs | ||
| $0.159 | $0.151 | $0.125 | $0.114 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0528063010 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC VERT 30POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 189672 pcs | Data sheet | 3010 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | 52806 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 052806-3010 052806-3010-C 0528063010-C 52806-3010 52806-3010-C 52806-3010-ND 528063010 528063010-C WM11124 WM11124CT WM11124CT-ND WM11124INACTIVE-ND |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Housing Color | - |
| Height Above Board | 0.213" (5.40mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 30 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
