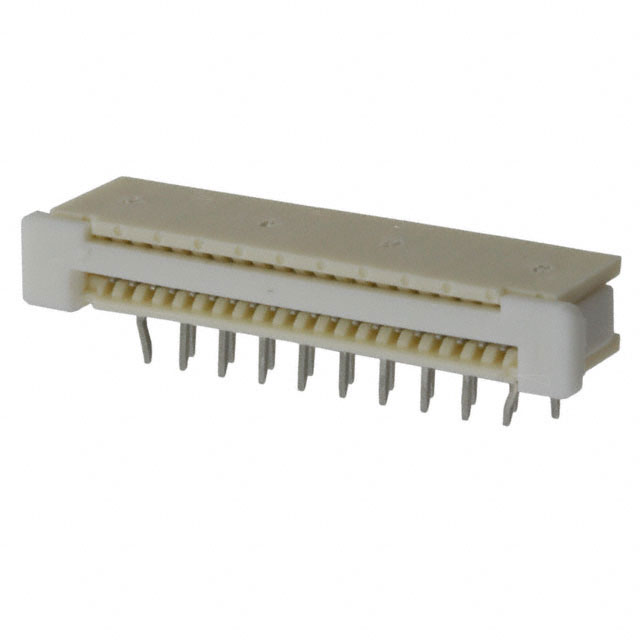

0520432019
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0520432019 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0520432019 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0520432019 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 20POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0520432019 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 20POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5347 pcs | Data sheet | 0520432019 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | 52043 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 052043-2019 52043-2019 520432019 WM3371 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Housing Color | - | Height Above Board | 0.165" (4.20mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 20 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin Bismuth |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyester | Actuator Color | - |
