0439151105

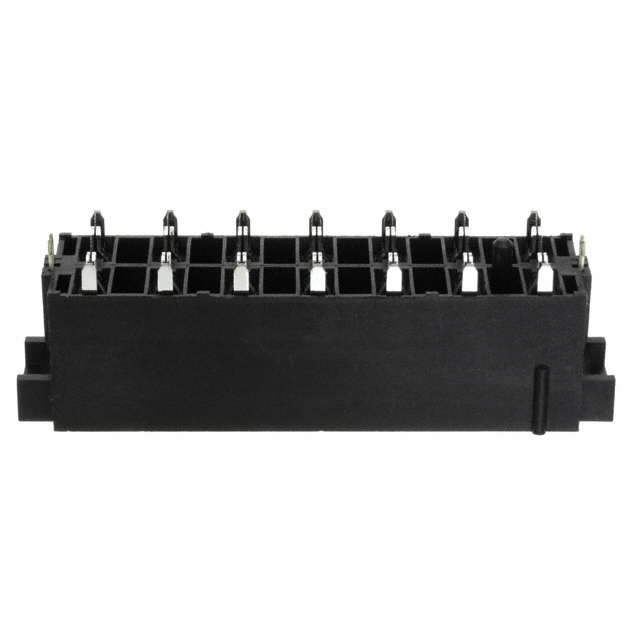

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0439151105 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0439151105 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0439151105 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 14POS 10MM VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $12.913 | $11.657 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0439151105 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 14POS 10MM VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2788 pcs | Data sheet | 42815-001 Series Prod Spec43915-zzzz Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Sr 43915 |
| Row Spacing - Mating | - | Pitch - Mating | 0.394" (10.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 043915-1105 043915-1105-E 0439151105-E 43915-1105 43915-1105-E 439151105 439151105-E WM2254 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.827" (21.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 14 position 0.394" (10.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Rectangular |
| Contact Material | Copper Zirconium Alloy | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
