0394220002

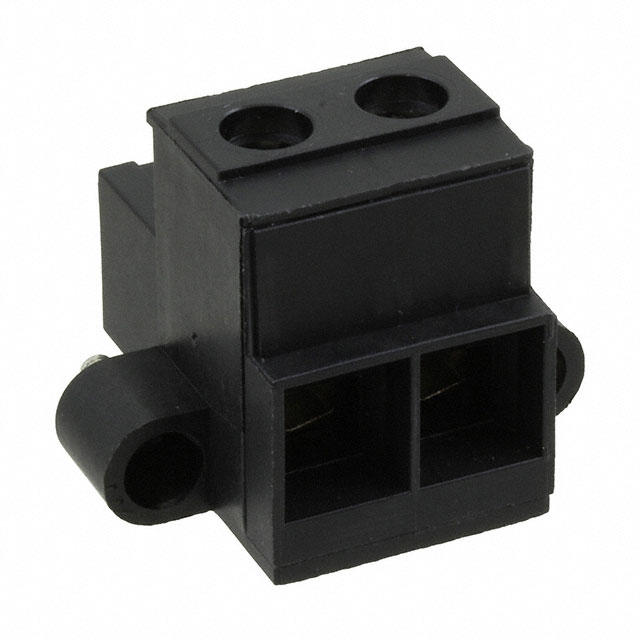

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0394220002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0394220002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0394220002 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK PLUG 2POS STR 12MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.883 | $4.297 | $4.053 | $3.857 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.784 | $3.296 | $3.174 | $3.052 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0394220002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 12MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12705 pcs | Data sheet | 03942200xx Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 3-14 AWG |
| Voltage - UL | 600V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screw - Rising Cage Clamp |
| Series | EuroMax 39422 | Screw Size | M5 |
| Positions Per Level | 2 | Plug Wire Entry | 180° |
| Pitch | 0.472" (12.00mm) | Packaging | Bulk |
| Other Names | 039422-0002 0394220002-ND 39422-0002 394220002 424502 WM13949 |
Operating Temperature | 130°C |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.311" (33.30mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.472" (12.00mm) 180° Free Hanging (In-Line) | Current - UL | 85A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
