0190700009

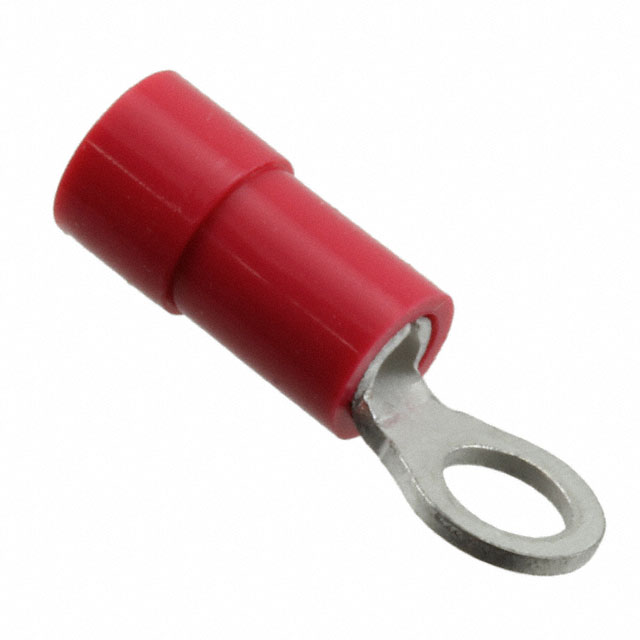

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0190700009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0190700009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0190700009 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RING CIRC 18-22AWG #6 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.073 | $0.068 | $0.058 | $0.05 | $0.047 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.041 | $0.04 | $0.032 | $0.03 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0190700009 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RING CIRC 18-22AWG #6 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 823043 pcs | Data sheet | 190700009 Drawings0190700009Insulkrimp Rings, Spades Prod Spec |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.235" (5.96mm) | Thickness | 0.028" (0.71mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 6 Stud | Series | InsulKrimp |
| Packaging | Bulk | Other Names | 019070-0009 0190700009-ND 19070-0009 190700009 AA-220-06X WM13697 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 3 Weeks |
| Length - Overall | 0.709" (18.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Electro-Tin |
| Color | Red |
