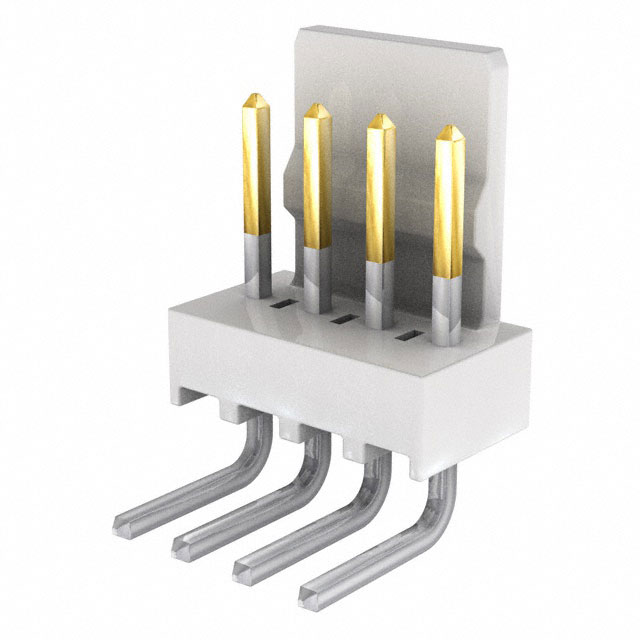

0022124042
![0022124042](/thumb/medium/90/0022124042.jpg)
![](/upfile/linecard/medium_Affinity-Medical-Technologies-a-Molex-company.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0022124042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0022124042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 0022124042 |
---|---|
Manufacturer | Affinity Medical Technologies - a Molex company |
Description | 2.54MM KK HDR RA FRICLK 4POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.266 | $0.249 | $0.191 | $0.166 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.137 | $0.12 | $0.112 |
- Product parameter
- Data sheet
Product parameter
Part Number | 0022124042 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | 2.54MM KK HDR RA FRICLK 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 182099 pcs | Data sheet | 0022124042 Drawing |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Shrouded - 1 Wall | Series | KK 7395 |
Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | 0022-12-4042 002212-4042 0022124042-ND 22-12-4042 22124042 739504BG WM16136 |
Operating Temperature | - |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
Insulation Height | 0.228" (5.80mm) | Insulation Color | Natural |
Ingress Protection | - | Features | - |
Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | 0.264" (6.70mm) |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
