501403B00000G

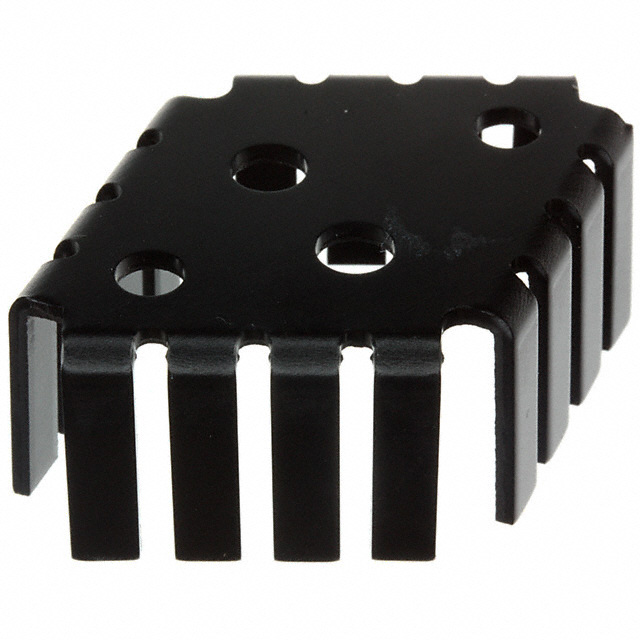

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501403B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501403B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501403B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEAT SINK TO-3 .750" COMPACT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.442 | $0.419 | $0.408 | $0.397 | $0.375 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.353 | $0.331 | $0.309 | $0.298 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501403B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEAT SINK TO-3 .750" COMPACT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77093 pcs | Data sheet | Standard Heatsinks Catalog501x03B00000G Datasheet |
| Category | Fans, Thermal Management | Width | 1.400" (35.56mm) |
| Type | Board Level | Thermal Resistance @ Natural | 10.00°C/W |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 400 LFM | Shape | Rhombus |
| Series | - | Power Dissipation @ Temperature Rise | 4.0W @ 40°C |
| Package Cooled | TO-3 | Other Names | 001146 501403B00000 5014B 6014B HS149 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.880" (47.75mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.750" (19.05mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 4.0W @ 40°C Board Level | Attachment Method | Bolt On |
