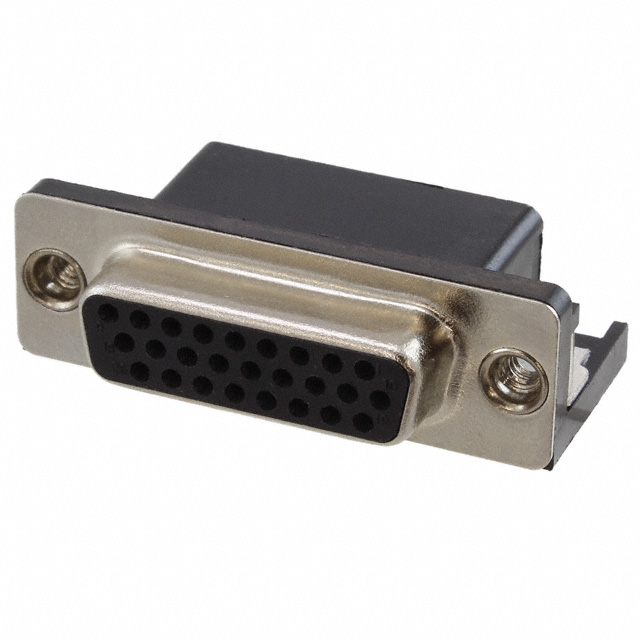

AHDF26A-KG-TAXB-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHDF26A-KG-TAXB-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHDF26A-KG-TAXB-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHDF26A-KG-TAXB-R |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN DSUB HD RCPT 26POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.936 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHDF26A-KG-TAXB-R | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 26POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40214 pcs | Data sheet | AHDzzzA-KG-TAxB(R) DrawingAHDxxxA-KG-TAxB |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | - | Packaging | Tray |
| Other Names | AE11027 AHDF26A-KG-TAXB-R-ND |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions | 26 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock |
| Detailed Description | 26 Position D-Sub, High Density Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density | Color | - |
| Backset Spacing | 0.350" (8.89mm) |
