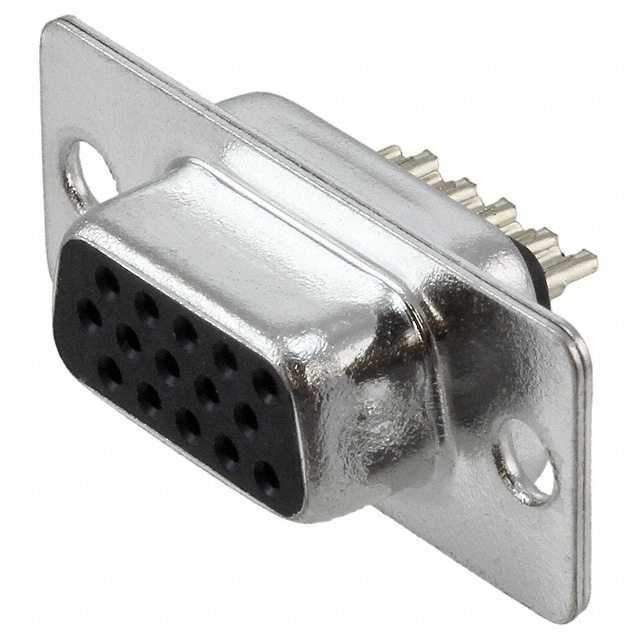

A-HDF 15 LL/Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-HDF 15 LL/Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-HDF 15 LL/Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-HDF 15 LL/Z |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB HD RCPT 15POS STR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.279 | $0.262 | $0.236 | $0.21 | $0.201 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.184 | $0.175 | $0.144 | $0.131 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-HDF 15 LL/Z | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 15POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 149850 pcs | Data sheet | A-HDxxxLL/Z Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | A-HDF-15-LL/Z A-HDF15LL-TL-B-R A-HDF15LL-TL-B-R-ND AE11025 |
Operating Temperature | -20°C ~ 85°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
