DC630R-222M

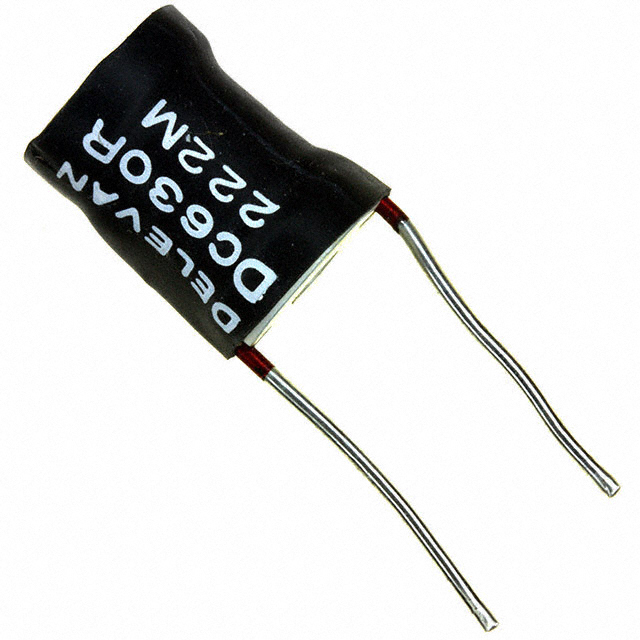

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC630R-222M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC630R-222M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC630R-222M |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 2.2UH 12.8A 5 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.15 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC630R-222M | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 2.2UH 12.8A 5 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25979 pcs | Data sheet | DC630(R) Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.630" Dia (16.00mm) | Shielding | Unshielded |
| Series | DC630R | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | DC630R-222M BULK 100 DN4768 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.830" (21.08mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Unshielded Wirewound Inductor 12.8A 5 mOhm Max Radial | DC Resistance (DCR) | 5 mOhm Max |
| Current Rating | 12.8A | Current - Saturation | 46A |
