Home > Products > Integrated Circuits (ICs) > PMIC - Full, Half-Bridge Drivers > NCP5338MNR2G

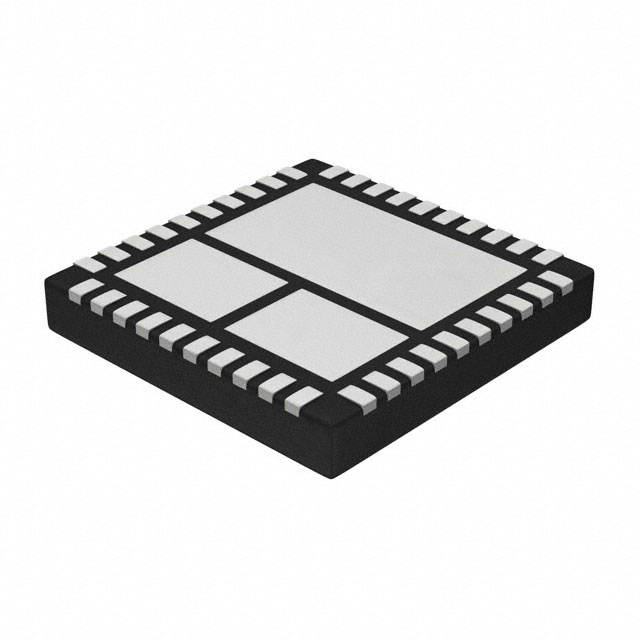

NCP5338MNR2G

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP5338MNR2G with confidence from Components-World.HK, 1 Year Warranty

Dowload NCP5338MNR2G Details in PDF

Request a Quote

Part Number	NCP5338MNR2G
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOSFET DVR HI/LO MOSF 40QFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4906 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	NCP5338MNR2G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC MOSFET DVR HI/LO MOSF 40QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4906 pcs	Data sheet	NCP5338
Category	Integrated Circuits (ICs)	Voltage - Supply	4.5 V ~ 5.5 V
Voltage - Load	4.5 V ~ 20 V	Technology	Power MOSFET
Supplier Device Package	40-QFN (6x6)	Series	-
Rds On (Typ)	-	Packaging	Tape & Reel (TR)
Package / Case	40-VFQFN Exposed Pad	Output Configuration	Half Bridge
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	PWM
Features	Bootstrap Circuit	Fault Protection	Over Temperature, UVLO
Detailed Description	Half Bridge Driver Buck Converters Power MOSFET 40-QFN (6x6)	Current - Peak Output	-
Current - Output / Channel	40A	Applications	Buck Converters
