H11D1SR2M

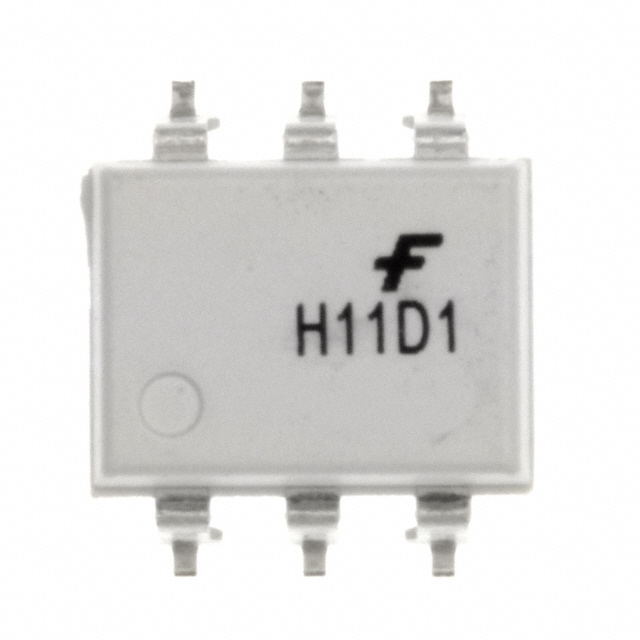

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H11D1SR2M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H11D1SR2M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H11D1SR2M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.497 | $0.404 | $0.28 | $0.211 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H11D1SR2M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95203 pcs | Data sheet | H11D1M-3M, 4N38M, MOC8204M |
| Category | Isolators | Voltage - Output (Max) | 300V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.15V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 5µs, 5µs |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Cut Tape (CT) |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Other Names | H11D1SR2MCT | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD | Current Transfer Ratio (Min) | 20% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 100mA |
| Current - DC Forward (If) (Max) | 80mA |
