LT8705MPFE#PBF

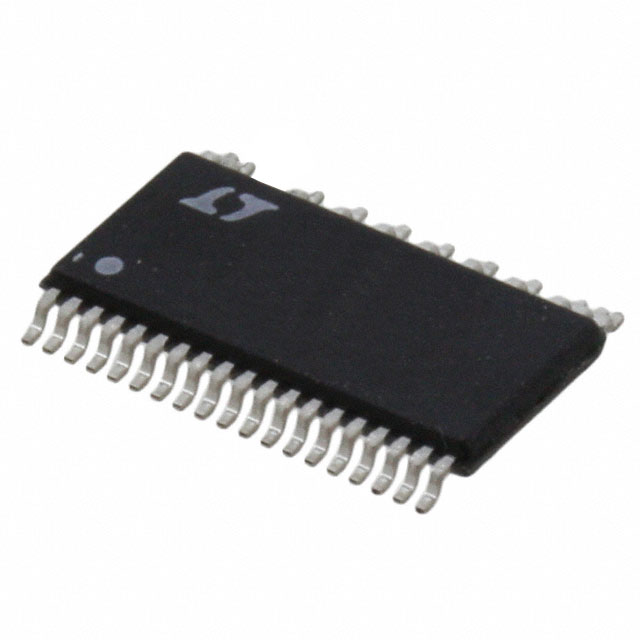

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LT8705MPFE#PBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LT8705MPFE#PBF Details in PDFSee Product Specifications for product details.
Buy LT8705MPFE#PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LT8705MPFE#PBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG CTRLR BUCK-BOOST 38TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $11.136 | $9.308 | $7.913 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LT8705MPFE#PBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG CTRLR BUCK-BOOST 38TSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4254 pcs | Data sheet | Mac OS X ShortcutsLTspice FlyerLTspice IV Getting Started GuideLT8705 DatasheetLTpowerCAD II User GuideLTpowerCAD II Quick Start Guide |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 2.8 V ~ 80 V |
| Topology | Buck-Boost | Synchronous Rectifier | Yes |
| Supplier Device Package | 38-TSSOP-EP | Series | - |
| Serial Interfaces | - | Packaging | Tube |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width), 31 Leads, Exposed Pad | Output Type | Transistor Driver |
| Output Phases | 2 | Output Configuration | Positive |
| Operating Temperature | -55°C ~ 150°C (TJ) | Number of Outputs | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Up/Step-Down |
| Frequency - Switching | 100kHz ~ 400kHz | Duty Cycle (Max) | - |
| Detailed Description | Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 38-TSSOP-EP | Control Features | Enable, Frequency Control, Soft Start |
| Clock Sync | Yes | Base Part Number | LT8705 |
