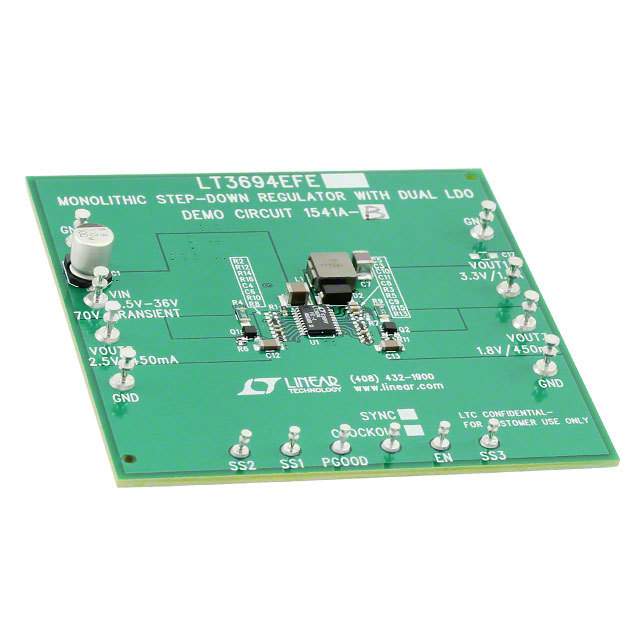

DC1541A-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1541A-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1541A-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1541A-B |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LT3694EFE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $46.362 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1541A-B | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | BOARD EVAL FOR LT3694EFE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 789 pcs | Data sheet | LT3694/LT3694-1DC1541A-(A, B) Quick Start Guide |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 1.8V, 2.5V, 3.3V |
| Voltage - Input | 4.5 V ~ 36 V | Utilized IC / Part | LT3694-1 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Buck | Outputs and Type | 3, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Main Purpose | DC/DC, Step Down with LDO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 800kHz | Detailed Description | LT3694-1 - DC/DC, Step Down with LDO 3, Non-Isolated Outputs Evaluation Board |
| Current - Output | 1.7A, 450mA, 450mA | Board Type | Fully Populated |
| Base Part Number | LT3694 |
