ADP7183ACPZN0.5-R7

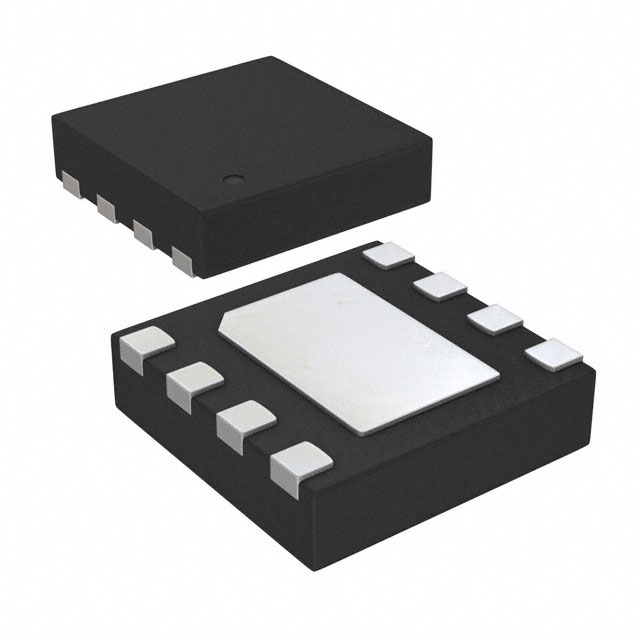

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADP7183ACPZN0.5-R7 with confidence from Components-World.HK, 1 Year Warranty
Dowload ADP7183ACPZN0.5-R7 Details in PDFSee Product Specifications for product details.
Buy ADP7183ACPZN0.5-R7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADP7183ACPZN0.5-R7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG LINEAR -0.5V 300MA 8LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.421 | $1.275 | $1.045 | $0.889 | $0.75 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ADP7183ACPZN0.5-R7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG LINEAR -0.5V 300MA 8LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49512 pcs | Data sheet | ADP7183 |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.22V @ 300mA |
| Voltage - Output (Min/Fixed) | -0.5V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | -5.5V | Supplier Device Package | 8-LFCSP (2x2) |
| Series | - | Protection Features | Current Limit, Thermal Overload |
| Packaging | Cut Tape (CT) | Package / Case | 8-UFDFN Exposed Pad, CSP |
| PSRR | 85dB ~ 40dB (1kHz ~ 1MHz) | Output Type | Fixed |
| Output Configuration | Negative | Other Names | ADP7183ACPZN0.5-R7CT |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of Regulators | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Negative Fixed 1 Output -0.5V 300mA 8-LFCSP (2x2) | Current - Supply (Max) | 7mA |
| Current - Quiescent (Iq) | 900µA | Current - Output | 300mA |
| Control Features | Enable | Base Part Number | ADP7183 |
