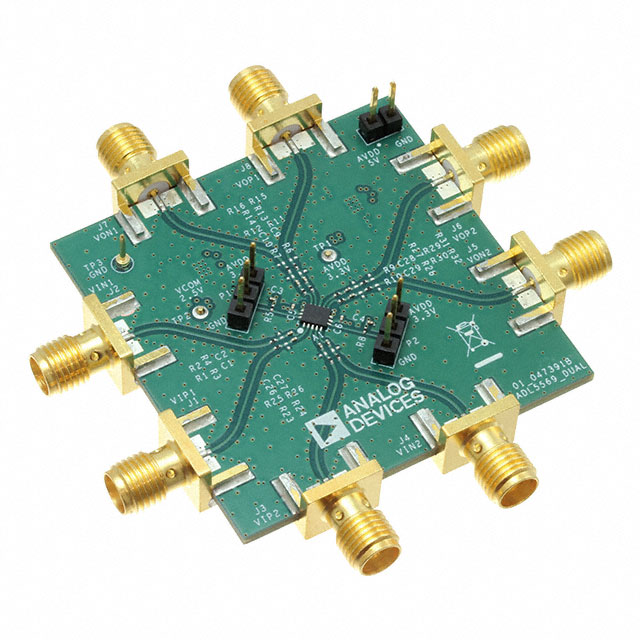

ADL5569-EVALZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADL5569-EVALZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADL5569-EVALZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADL5569-EVALZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | ADL5569 EVAL BOARD |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $61.307 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADL5569-EVALZ | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | ADL5569 EVAL BOARD | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 603 pcs | Data sheet | ADL5569 |
| Category | Development Boards, Kits, Programmers | Voltage - Supply, Single/Dual (±) | 4.75 V ~ 5.25 V |
| Utilized IC / Part | ADL5569 | Supplied Contents | Board(s) |
| Slew Rate | - | Series | - |
| RoHS Status | RoHS Compliant | Output Type | Differential |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Detailed Description | ADL5569 2 - Dual Channels per IC Differential Amplifier Evaluation Board |
| Current - Supply (Main IC) | 86mA | Channels per IC | 2 - Dual |
| Board Type | Fully Populated | Amplifier Type | Differential |
| -3db Bandwidth | 6.5GHz |
