929852-01-20-RB

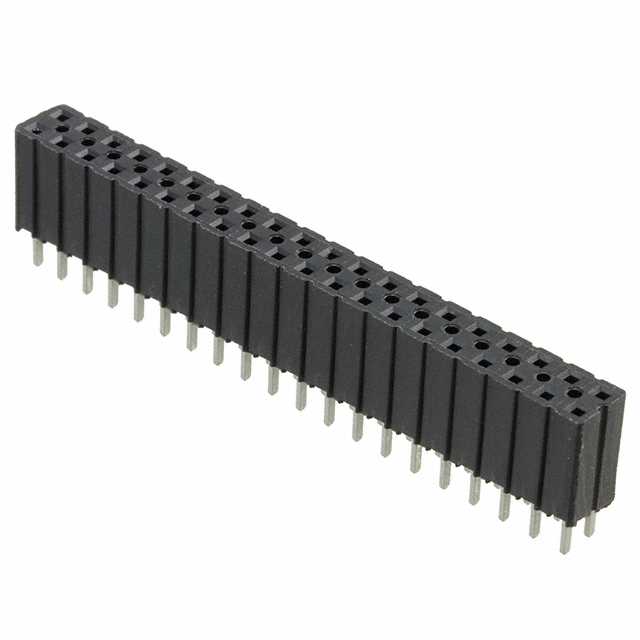

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929852-01-20-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929852-01-20-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929852-01-20-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN RCPT 40POS DUAL .100" GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.404 | $1.348 | $1.123 | $0.955 | $0.814 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 929852-01-20-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RCPT 40POS DUAL .100" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48489 pcs | Data sheet | 929, 939 Series, Boardmount Socket Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Termination | Solder | Style | Board to Board |
| Series | 929 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 00051111734094 3M156097 7000057215 80000912123 929852-01-20-RB-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
