45120-010030-7700/20-E-24

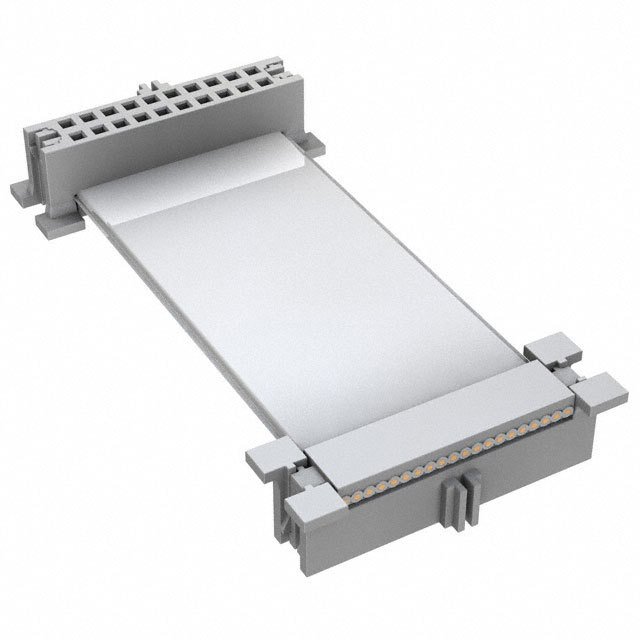

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 45120-010030-7700/20-E-24 with confidence from Components-World.HK, 1 Year Warranty
Dowload 45120-010030-7700/20-E-24 Details in PDFSee Product Specifications for product details.
Buy 45120-010030-7700/20-E-24 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 45120-010030-7700/20-E-24 |
|---|---|
| Manufacturer | 3M |
| Description | CABLE ASSY 20 POS 24" PINOUT-E |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $7.374 | $6.848 | $5.97 | $5.268 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $4.917 | $4.811 | $4.565 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 45120-010030-7700/20-E-24 | Manufacturer | 3M |
|---|---|---|---|
| Description | CABLE ASSY 20 POS 24" PINOUT-E | Lead Free Status / RoHS Status | |
| Quantity Available | 7386 pcs | Data sheet | 451, 452 Socket/Header SeriesCustom Cable 7700 Series Part Number Breakdown |
| Category | Cable Assemblies | Usage | - |
| Shielding | Unshielded | Series | 7700 |
| Pitch - Connector | 0.050" (1.27mm) | Pitch - Cable | 0.025" (0.64mm) |
| Number of Rows | 2 | Number of Positions | 20 |
| Length | 2.00' (609.60mm) | Features | Polarizing Key |
| Detailed Description | 20 Position Cable Assembly Rectangular Socket to Socket, Reversed 2.00' (609.60mm) | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Socket to Socket, Reversed |
| Color | Gray | Cable Termination | IDC |
