3431-D202

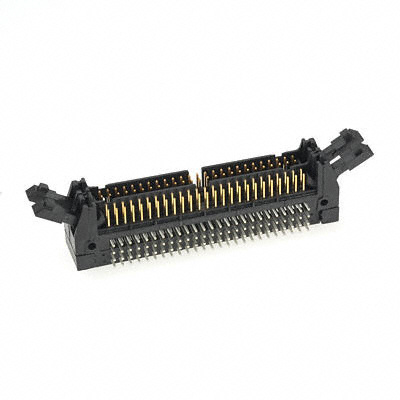

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3431-D202 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3431-D202 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 3431-D202 |
---|---|
Manufacturer | 3M |
Description | CONN HEADER STKD 34POS R/A SH |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | 3431-D202 | Manufacturer | 3M |
---|---|---|---|
Description | CONN HEADER STKD 34POS R/A SH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 5384 pcs | Data sheet | Interconnect Catalog(N)3yyy-Dx02zz 3000 Series |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Shrouded - 3 Wall | Series | 3000 |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | 00076308708009 05113826711 07630870800 80001417585 80130026026 |
Operating Temperature | -55°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 34, 34 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.660" (16.76mm) |
Insulation Color | Black | Ingress Protection | - |
Features | Keying Slot, Mounting Flange | Fastening Type | Latch Lock/Eject Hooks, Short |
Detailed Description | Connector Header Through Hole, Right Angle 34, 34 position 0.100" (2.54mm) | Current Rating | 1A |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Copper Alloy | Contact Length - Post | 0.112" (2.84mm) |
Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
Contact Finish - Mating | Gold | Connector Type | Header, Stackable (2) |
Applications | - |
