3428-L302
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3428-L302 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3428-L302 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3428-L302 |
|---|---|
| Manufacturer | 3M |

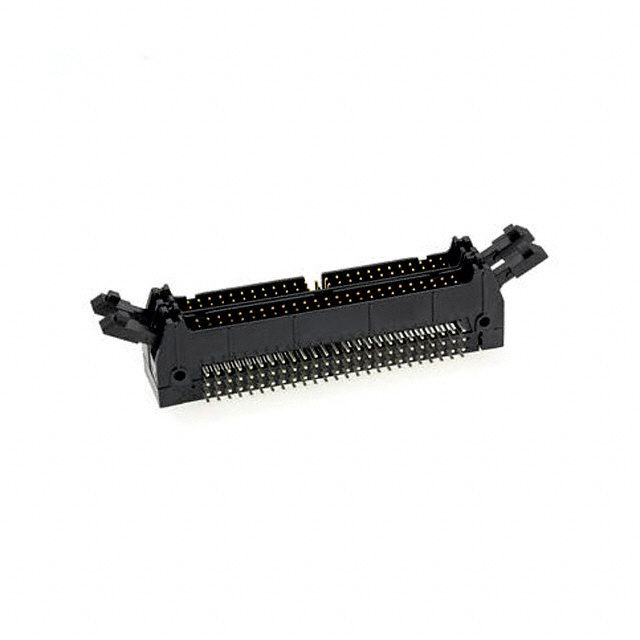

| Description | CONN HEADER STKD 20POS R/A LO |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $9.339 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3428-L302 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER STKD 20POS R/A LO | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3684 pcs | Data sheet | Interconnect Catalog3000 Series 4-Wall Condo Header |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 00076308708030 05400777348 07630870803 3428L302 5400777348 54007773481 80001417619 80130068085 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20, 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.660" (16.76mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole, Right Angle 20, 20 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header, Stackable (2) | Applications | - |
