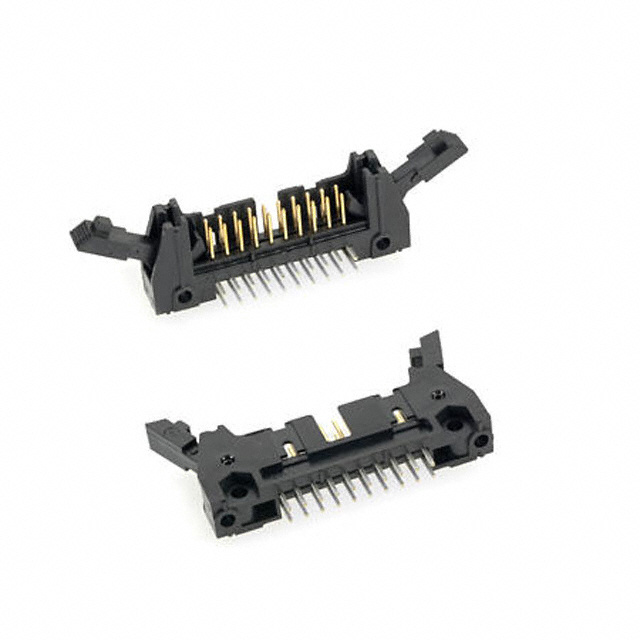

| Part Number | 3314-6203-UG |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 14PS STR SHORT LATCH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1050 pcs | ||||
|---|---|---|---|---|---|
| $0.643 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3314-6203-UG | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 14PS STR SHORT LATCH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 56915 pcs | Data sheet | Short Form Catalog3000 Series, Four-Wall Header Datasheet |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Copper Alloy |
| Type Attributes | - | Termination | Solder |
| Style | Board to Cable/Wire | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | 3000 | Row Spacing - Mating | Shrouded - 4 Wall |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.155" (3.94mm) |
| Other Names | 00076308708306 05111152002 07630870830 3314-6503UG 3314-6503UG-ND 80001417866 80400001352 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 14 |
| Number of Contacts | 200µin (5.08µm) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Standard Lead Time | 6 Weeks |
| Manufacturer Part Number | 3314-6203-UG | Length - Post (Mating) | - |
| Insulation Material | Tin-Lead | Insulation Height | 0.695" (17.65mm) |
| Features | Keying Slot, Mounting Flange | Expanded Description | 14 Positions Header Connector 0.100" (2.54mm) Through Hole Gold |
| Description | CONN HEADER 14PS STR SHORT LATCH | Current Rating | 1A |
| Current - Max/Contact | Latch Lock/Eject Hooks, Short | Contact Length - Post | 0.240" (6.10mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | 15µin (0.38µm) |
| Contact Finish - Mating | 0.680" (17.27mm) | Connector Type | Header |
| Actual Diameter | Black |
