150224-6002-RB

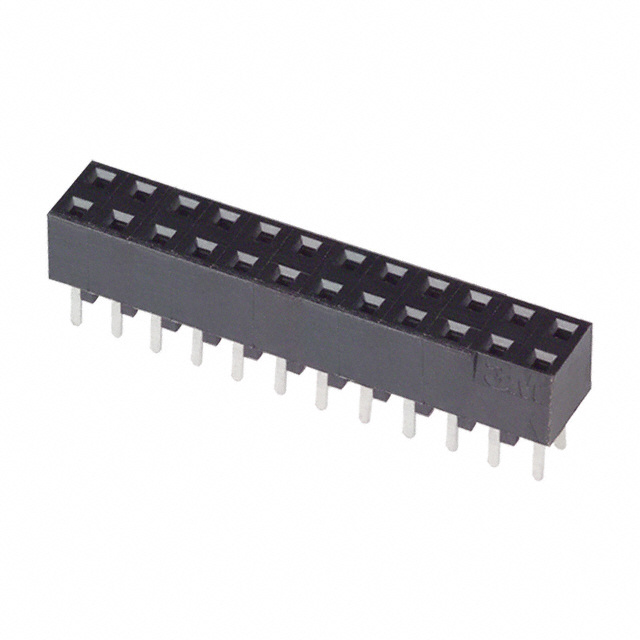

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 150224-6002-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 150224-6002-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 150224-6002-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN 24POS 2MM SOCKET VERT PC MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 154 pcs | ||
|---|---|---|---|---|---|
| $1.126 | $1.081 | $0.90 | |||
| 616 pcs | 1078 pcs | 5082 pcs | |||
| $0.765 | $0.653 | $0.585 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 150224-6002-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 24POS 2MM SOCKET VERT PC MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66430 pcs | Data sheet | 1502 Series Datasheet1502 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | 1502 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Other Names | 00076308788612 1502246002RB 3M1324 5111165669 51111656693 7010315399 70200301995 80000900656 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 24 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.100" (2.54mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
